4802.1310  Plug, solder terminal, insulated, 3.5 mm, 3-pole, straight, , UK-Connector

Part: 4802.1310

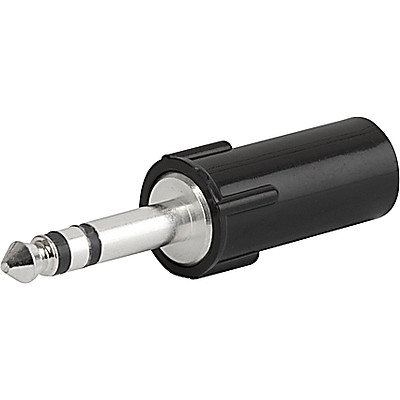

Plug, solder terminal, insulated, 3.5 mm, 3-pole, straight, UK-Connector

... loading ...

Description

  • Solder: for cable mounting:,
  • Data and Signal transfer
  • Data and Signal Connectors 3-pole, insulated, straight

Characteristics

  • Does not comply with the JAP or BPO standard

Diameter

3.5 mm

Number of Poles

3-pole

Ratings DC

1 A / 12 VDC

Ratings AC

1 A / 12 VAC

Dielectric Strength

500 VDC

Insulation Resistance

> 10000 MΩ␣ @  500 VDC

Allowable Operation Temperature

-20 °C to 70 °C

Terminal

solder terminal

Housing

insulated

Style

straight

Lifetime

10000 Insertions​

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900120000000004502 4802.1310
LOADING...

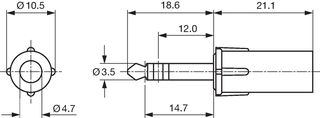

Dimensions [mm]


Short Table of Variants 4802.1310 Open complete table 4802.1310

Product group Diameter [mm] Number of Poles Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

Data and Signal Plug/Sockets 3.5 3-pole 4802.1310 - ...

Packaging unit 100 Pcs

900120000000004502 4802.1310
LOADING...
Alternative: Housing shielded (1)

[Swipe to the left and right for more options]

Mating Outlets/Connectors (4)

[Swipe to the left and right for more options]

4802.2300

Socket, solder terminal, screened, 3.5 mm, 3-pole, straight, UK-Connector

4802.2310

Socket, solder terminal, insulated, 3.5 mm, 3-pole, straight, UK-Connector

4802.2320

Socket, PCB terminals, screened, 3.5 mm, 3-pole, straight, UK-Connector

4802.2330

Socket, PCB terminals, insulated, 3.5 mm, 3-pole, straight, UK-Connector
