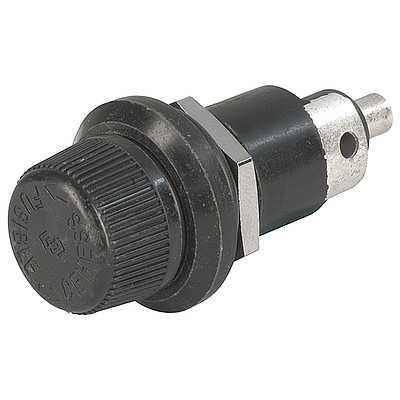

231549P  Shock-Safe Fuseholder, 6.3 x 32 mm, Fingergrip, IP68

Series: 231549P

Shock-Safe Fuseholder, 6.3 x 32 mm, Fingergrip, IP68

Free Sample Request

Description

  • IP68 from front-side
  • Screw type fuse carrier

Fuse-Link

6.3 x 32 mm

Mounting

Panel mount, Front Side

Attachment

Fixing Nut

Terminal

Solder

Rated Voltage

250 VAC

Rated current

16 A

Rated Power Acceptance IEC

3.6 W / 16 A @ Ta 23 °C

Degree of Protection

IP68

Admissible Ambient Air Temp.

-40 °C to 125 °C

Climatic Category

40/125/56 acc. to IEC 60068-1

Material: Socket

Thermoset, black

Unit Weight

38 g

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Product Marking

S_SCHURTER_Logo, Type, Rated Voltage, Rated current

Soldering Methods

Iron
Soldering Profile

Contact Resistance

< mΩ at 100 mA

Resistance to Vibration

acc. to NF C 20-706 / IEC 60068-2-6, test Fc

Mechanical Shock

acc. to NF C 20-706 / IEC 60068-2-27

Mechanical Shock (Bump)

acc. to NF C 20-729 / IEC 60068-2-29

Salt Mist

acc. to NF C 20-711 / IEC 60068-2-11

Damp Heat

acc. to NF C 20-604

Climatic Composite

acc. to NF C 20-619 Phase D

Admissible Torque on Fixing Nut

max 1.2 Nm

Panel Thickness

max 5 mm

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: 231549P

Approval Logo Certificates Certification Body Description


Application standards

Application standards where the product can be used

Organization Design Standard Description
Partners IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE Selbsteklaration SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010020040000000568
LOADING...

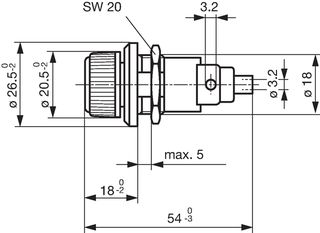

Dimension [mm]

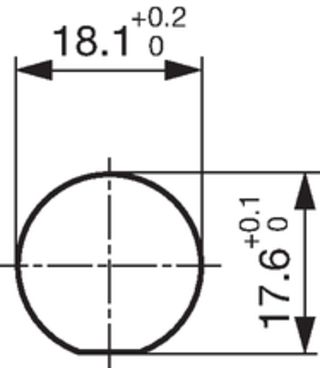

Mounting holes

Short Table of Variants 231549P Open complete table 231549P

Holder Cap Degree of Protection Order Number A=Most Popular

A=Most Popular


Most popular products have the following customer benefits:
- previously ordered by multiple customers
- generally in stock for immediate delivery
- early adoption or mature life cycle
Contact us for availability on other product variants, lead-times vary:
Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity:
Stock Check SCHURTER

Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

Fingergrip IP68 7093.0110 ...

Packaging Unit Bulk (10 pcs.)

010020040000000568
