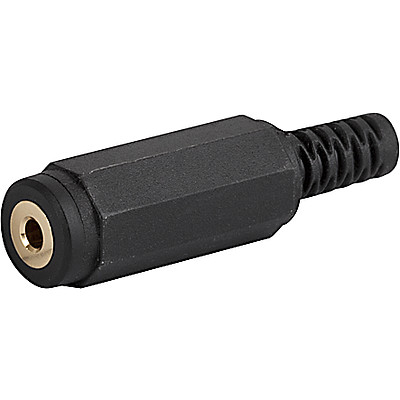

4831.3300  , solder terminal, insulated, 3-pole, Audio Plug/Sockets, 2.5 mm

Part: 4831.3300

, solder terminal, insulated, 3-pole, Audio Plug/Sockets, 2.5 mm

... loading ...


  • Solder: for cable mounting:,
  • Audio entrances and exits
  • Data and Signal transfer
  • Audio Plug: 3-pole,, straight



The diameter describes the outer dimension of the plug respectively the inner diameter of the socket.
For DC- connectors additional information is available. The inner diameter of the plug as well as the dimeter of the code pin will be listed, separated by slashes. e.g. 5.5 mm / 3.3 mm / 1 mm.

2.5 mm

Number of Poles


Ratings DC

0.5 A / 30 VDC

Ratings AC

0.5 A / 30 VAC

Dielectric Strength

500 VDC

Insulation Resistance

> 100 MΩ␣ @  500 VDC

Allowable Operation Temperature

-20 °C to 70 °C


solder terminal nickel-plated






5000 Insertions​

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900120030000004531 4831.3300

Dimensions [mm]

Cable diameter max. 4.0 mm


Short Table of Variants 4831.3300 Open complete table 4831.3300

Product group Diameter [mm] Number of Poles Order Number
