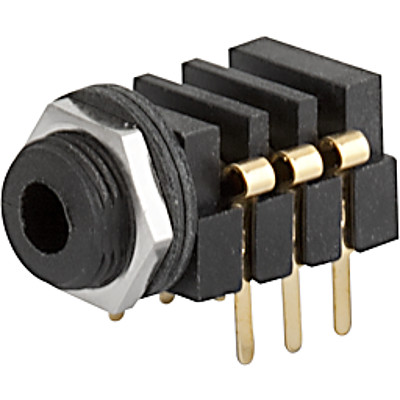

4802.2330  Socket, PCB terminals, insulated, 3.5 mm, 3-pole, straight, , UK-Connector

Part: 4802.2330

Socket, PCB terminals, insulated, 3.5 mm, 3-pole, straight, UK-Connector

... loading ...

Description

  • PCB: Screw-on mounting, rear-side:,
  • Data and Signal transfer
  • Data and Signal Connectors 3-pole, insulated, straight
  • Reinforced gold plating for increased insertions

Characteristics

  • Does not comply with the JAP or BPO standard

Diameter

Diameter


The diameter describes the outer dimension of the plug respectively the inner diameter of the socket.
For DC- connectors additional information is available. The inner diameter of the plug as well as the dimeter of the code pin will be listed, separated by slashes. e.g. 5.5 mm / 3.3 mm / 1 mm.

3.5 mm

Number of Poles

3-pole

Ratings DC

1 A / 12 VDC

Ratings AC

1 A / 12 VAC

Dielectric Strength

500 VDC

Insulation Resistance

> 10000 MΩ␣ @  500 VDC

Allowable Operation Temperature

-20 °C to 70 °C

Terminal

PCB terminals

Mounting

Screw-on mounting
wall thickness max. 2.0 mm

Housing

insulated

Style

straight

Lifetime

10000 Insertions​

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

900120000000004502 4802.2330
LOADING...

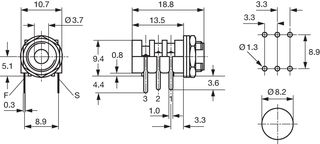

Dimensions [mm]
