Variant Details
Snap-in version
IEC connector C14 or C18

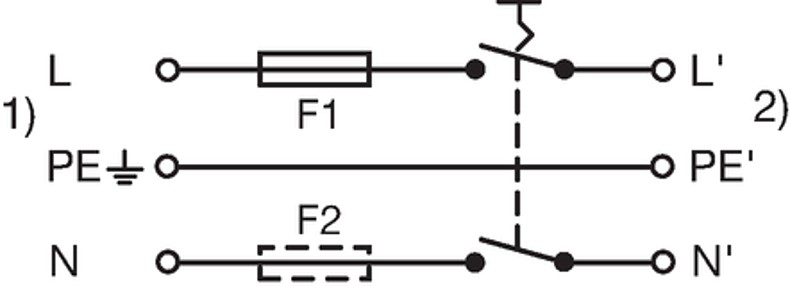

with EMC shielding

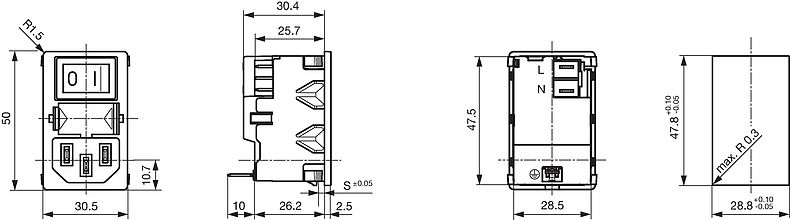

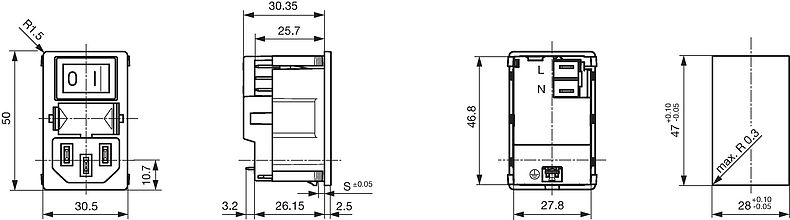

Snap-in mounting from front side
5 Variants
C14
70° C |
C18
70° C |
Description
- Panel mount: Snap-in version front side
- 3 Functions: Appliance Inlet protection class I or II, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole
- Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
- Quick connect terminals 4.8 x 0.8 mm
- With cover on rear-side
Characteristics
- Ultra-compact design. Small dimensions in front of and behind the panel
- All single elements are already wired
- For added safety "Extra-Safe" fuse drawers are available
- Ideal for application with high transient loads
- Suitable for use in equipment according to IEC/UL 62368-1
Other versions on request
- Fuse drawer 1-pole, plus spare fuse case
- Fuse drawer 2-pole, with shorting bar
- Line switch 1-pole
- Other rocker marking
Ratings IEC
10 A / 250 VAC; 50 Hz
Ratings UL/CSA
10 A / 250 VAC; 60 Hz
Dielectric Strength
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
Allowable Operation Temperature
-25 °C to 70 °C
IP-Protection
front side IP40 acc. to IEC 60529
Protection against electric shock
Suitable for appliances with protection class I or II acc. to IEC 61140
Terminal
Quick connect terminals 4.8 x 0.8 mm , tin-plated
Panel Thickness S
Snap-in: 1/1.5/2/2.5 mm
(all steps with one variant)
Material: Housing
Thermoplastic, black, UL 94V-0
Appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I or II
Fuseholder
1-/2-pole, Shocksafe category PC2 acc. to IEC 60127-6, UL 498,
for fuse-links 5 x 20 mm
Rated Power Acceptance @ Ta 23 °C
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per pole
Choose fuse-links for 2-pole version in such a way that the typical power acceptance is less than 1.4 W for each pole
Power Acceptance @ Ta > 23°C
Admissible power acceptance at higher ambient temperature see derating curves
Line Switch
Rocker switch 2-pole, non-illuminated, acc. to IEC 61058-1
Technical Details
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: KM
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | Certificate Number: 40046933 | |
|
UL | UR File Number: E93617 | |
|
CCC | CCC Certificate Number: 2020180204014679, 2020180204014380 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
| Designed according to | IEC 60320-1 | Appliance couplers for household and similar general purposes | |
| Designed according to | IEC 60127-6 | Miniature fuses. Part 6. Fuse-holders for miniature fuse-links | |
| Designed according to | IEC 61058-1 | Switches for appliances. Part 1. General requirements | |
| Designed according to | UL 60320-1 | Standard for Attachment Plugs and Receptacles | |
| Designed according to | CSA C22.2 no. 60320-1 | General Use Receptacles, Attachment Plugs, and Similar Wiring Devices |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
| Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements | |
| Suitable for applications acc. | IEC 60601-1 | Medical electrical equipment - Part 1: General requirements for basic safety and essential performance | |
| Suitable for applications acc. | IEC 60335-1 | Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13. |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13. | |
|
SCHURTER AG | Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP) |
